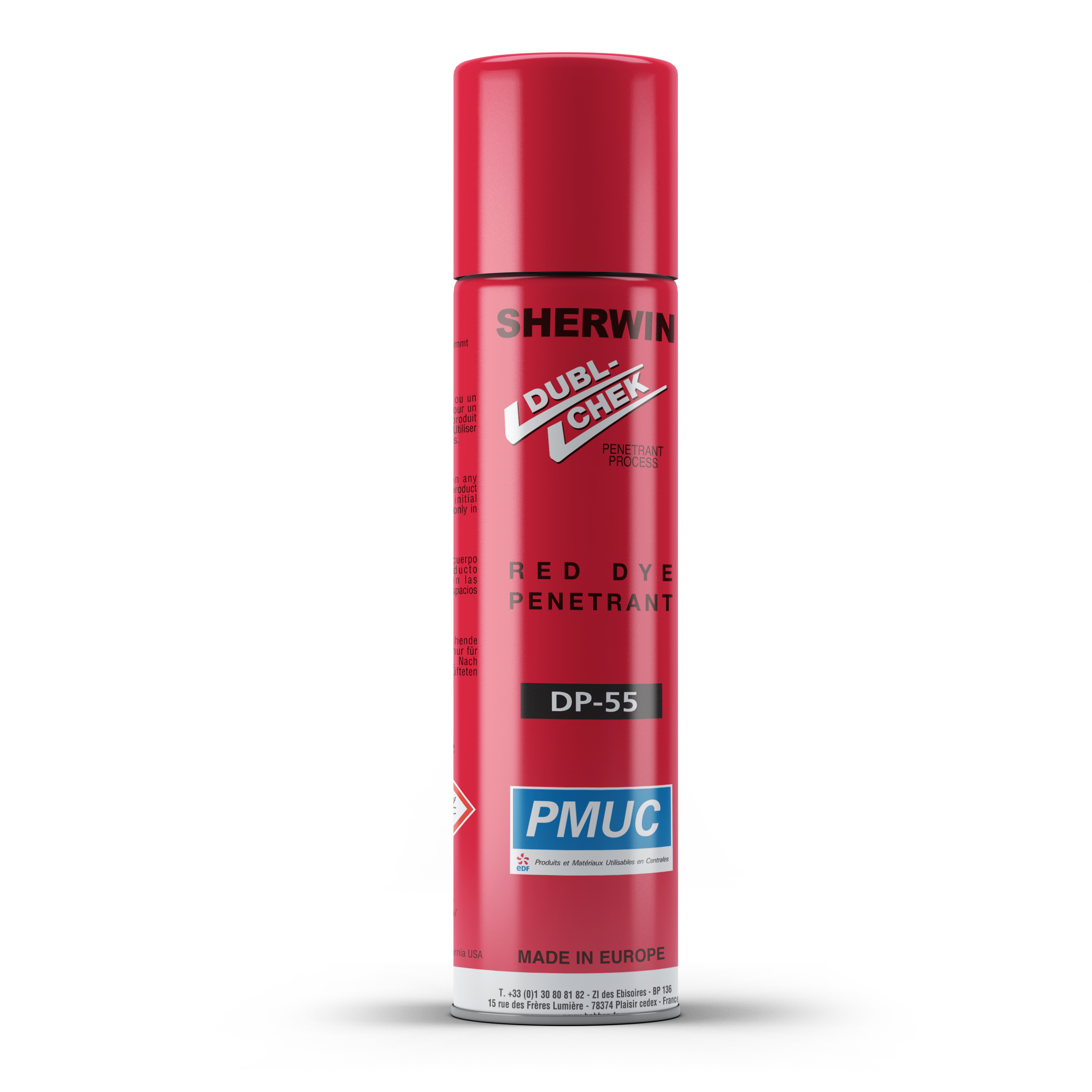

DP55 RED DYE PENETRANT 300ML AEROSOL (PMUC) – Visible Dye Penetrant for NDT

DP55 RED DYE PENETRANT 300ML AEROSOL (PMUC) is a visible red dye penetrant used in liquid penetrant testing to assist in identifying surface-breaking discontinuities in suitable materials.

DP55 belongs to the Type II penetrant category and is classified by the manufacturer as Methods A and C, Level 2 under AMS 2644 and ISO 3452-2.

As a visible dye penetrant, DP55 is used during the penetrant application stage of a non-destructive testing procedure. Its purpose is to enter surface-open discontinuities so that relevant indications can subsequently be revealed using the appropriate developer and inspection conditions.

The product is water-washable and is described by SOCOMORE as resistant to overwashing.

RIO Middle East lists DP55 within its Penetrant Testing product category, alongside cleaners, developers and other specialist inspection materials.

DP55 Product Specifications

The following information identifies the listed 300 ml aerosol configuration.

These characteristics are based on the manufacturer’s published information. Users should refer to the applicable Technical Data Sheet and inspection procedure for operating requirements.

The Role of DP55 in Visible Dye Penetrant Testing

Visible dye penetrant inspection is a non-destructive testing method used to examine suitable, nonporous materials for discontinuities that are open to the surface.

The inspection relies on a penetrant entering accessible surface openings through capillary action.

After the prescribed penetration time, excess material is removed from the surface and the appropriate developer is applied.

The developer helps draw retained penetrant from surface-open discontinuities to form visible indications.

DP55 provides the red penetrant material used during this process.

It is important to distinguish between identifying an indication and determining whether a component is acceptable. Interpretation of indications must follow the relevant inspection standard and acceptance criteria.

DP55 should not be described as detecting subsurface defects that have no opening to the inspected surface.

Key Characteristics of DP55 Red Dye Penetrant

Type II Visible Penetrant

DP55 is classified as a Type II penetrant.

This designation identifies a visible dye penetrant system, distinguishing it from Type I fluorescent penetrants.

The inspection relies on the appearance of visible colour indications under the prescribed viewing conditions.

Water-Washable Formulation

SOCOMORE identifies DP55 as water-washable.

This characteristic is associated with Method A penetrant removal, where water is used to remove excess penetrant according to the approved procedure.

Water-washable does not mean that unrestricted washing is acceptable.

Removal conditions must be controlled to avoid affecting penetrant retained within relevant discontinuities.

Resistance to Overwashing

The manufacturer describes DP55 as resistant to overwashing.

This is a documented product characteristic, but it should not be interpreted as eliminating the possibility of excessive penetrant removal.

Inspection personnel must still follow the prescribed washing procedure and inspection requirements.

Method C Classification

DP55 is also classified for Method C.

Method C refers to solvent-removable penetrant processing using an appropriate solvent-removal procedure.

The selected removal method must correspond to the applicable inspection instructions.

Formulation Information

SOCOMORE identifies DP55 as free from Rhodamine and Azo III A2 amines.

These are specific manufacturer statements concerning the product formulation.

They should not be expanded into broader claims such as non-toxic, hazard-free or environmentally harmless.

Understanding Type II, Methods A and C, Level 2

The technical classifications associated with DP55 help purchasers and inspection personnel identify the appropriate penetrant for a specified inspection system.

A product’s classification does not independently determine whether it is approved for a particular aircraft, component or industrial inspection.

The full inspection system and applicable specification must be verified.

DP55 Within the Penetrant Inspection Sequence

DP55 is the penetrant material used during the second principal stage of a typical liquid penetrant inspection process.

The following overview explains the role of each material without replacing a qualified inspection procedure.

1. Surface Preparation

Before penetrant application, the surface must be prepared according to the relevant procedure.

Cleaning is intended to remove contamination that could prevent penetrant entry into surface-open discontinuities.

RIO Middle East lists DR62 Degreaser/Cleaner 300ML Aerosol as a separate product associated with penetrant inspection cleaning operations.

2. Penetrant Application

DP55 is applied as the visible red dye penetrant according to the inspection procedure.

The prescribed penetration time, surface conditions and application method must follow the approved instructions.

3. Excess Penetrant Removal

After the specified penetration time, excess penetrant is removed using the permitted removal method.

Because DP55 is classified for Methods A and C, the applicable procedure determines whether water washing or solvent removal is appropriate.

4. Developer Application

A compatible developer is applied where required by the inspection system.

The developer assists in producing visible indications from retained penetrant.

RIO Middle East also lists D100 White Developer 300ML Aerosol (PMUC) as a separate penetrant testing product.

5. Inspection and Interpretation

Indications are examined under the viewing conditions required by the relevant procedure.

Qualified personnel interpret the results against the applicable inspection criteria.

6. Post-Inspection Requirements

Any required post-cleaning, recording or component handling must follow the applicable inspection instructions.

DP55, DR62 and D100 – Different Roles in NDT

DP55 is commonly considered alongside cleaning and developer materials when sourcing a penetrant inspection system.

However, the three products perform different functions.

DP55 is not a degreaser, while DR62 is not a penetrant.

Similarly, a developer does not replace the penetrant itself.

Product compatibility, the removal method and the selected developer must be confirmed for the intended inspection procedure.

For other relevant materials, explore RIO Middle East’s Non-Destructive Testing product range.

Inspection Applications and Material Considerations

DP55 is associated with visible dye penetrant testing procedures used in industrial inspection and quality control.

The product may be considered where the governing procedure specifies a compatible Type II penetrant system.

Potential inspection contexts include:

• Examination of suitable nonporous metal components.
• Inspection of accessible surfaces for surface-breaking discontinuities.
• Manufacturing quality-control operations.
• Maintenance and repair inspection procedures.
• Industrial NDT examinations involving visible dye penetrants.

These are general applications of the liquid penetrant testing method and do not establish DP55 approval for every material or component.

Suitability depends on surface condition, material compatibility, the inspection specification and the complete penetrant system.

Published Standards and Approval References

SOCOMORE lists the following standards and conformity references for DP55:

• AMS 2644
• ASME
• ISO 3452
• PMUC
• RCC-M

These references should be interpreted according to the manufacturer’s current documentation.

The product’s classification and published references do not mean that DP55 is automatically suitable for every aerospace, nuclear or industrial application.

Purchasers should confirm the exact specification, applicable revision and approval requirements.

The current manufacturer listing is available through the official SOCOMORE DP55 product page.

Normal Inspection Temperature Range

SOCOMORE identifies a normal working temperature range of +10°C to +50°C for DP55, referencing ISO 3452.

For applications outside this temperature range, the manufacturer recommends consultation.

This range should not be confused with aerosol storage conditions or the permitted temperature limits of every inspection system.

All relevant procedure and product documentation must be checked before use.

Safety and Professional Handling

DP55 is supplied as a chemical aerosol for professional inspection operations.

Safe use requires review of the current product-specific Safety Data Sheet.

Relevant considerations include:

• Aerosol handling and storage requirements.
• Applicable ventilation and exposure controls.
• Appropriate personal protective equipment.
• Ignition-source precautions where required by the SDS.
• Product compatibility with the inspected material.
• Disposal of residual penetrant and contaminated cleaning materials.
• Compliance with applicable workplace and environmental regulations.

The manufacturer statements concerning water washability and formulation exclusions do not establish that the product is harmless.

Personnel should follow the current SDS and approved NDT procedures.

Technical Documentation and Product Verification

Technical documentation is essential for selecting an inspection consumable that matches the required testing method.

Technical Data Sheet

The DP55 Technical Data Sheet provides product-specific information concerning its penetrant classification, characteristics and inspection application.

Safety Data Sheet

The Safety Data Sheet provides details concerning the product’s chemical hazards, safe handling, storage, exposure controls and emergency measures.

Qualification and Conformity Documentation

Where the purchase requires a particular qualification or conformity reference, the applicable manufacturer evidence should be checked against the inspection specification.

Visit the SOCOMORE DP55 manufacturer product listing for available technical and safety documents.

Request DP55 Red Dye Penetrant from RIO Middle East

RIO Middle East lists DP55 RED DYE PENETRANT 300ML AEROSOL (PMUC) as part of its non-destructive testing product portfolio.

Customers sourcing visible dye penetrant materials can submit an enquiry using the manufacturer product reference.

Recommended RFQ Details

• Product Name: DP55 RED DYE PENETRANT 300ML AEROSOL (PMUC)
• Product Code: 100289P
• Package Size: 300 ml aerosol
• Product Type: Visible red dye penetrant
• Classification: Type II, Methods A and C, Level 2
• Required Quantity: Specify number of aerosol containers
• Documentation: Applicable TDS, SDS and conformity requirements
• Delivery Location: Specify the destination

If the purchasing requirement includes a complete inspection system, identify the required cleaner, penetrant and developer separately.

Request DP55 for Your NDT Requirements

Use the Add to Quote option on the RIO Middle East product page to request information about DP55 and the relevant purchasing documentation.

Frequently Asked Questions

• What is DP55 Red Dye Penetrant 300ML Aerosol?

DP55 is a visible red dye penetrant supplied in a 300 ml aerosol. It is classified as Type II, Methods A and C, Level 2 according to manufacturer information referencing AMS 2644 and ISO 3452-2.

• What is DP55 used for?

DP55 is used in liquid penetrant testing to assist in producing visible indications of surface-breaking discontinuities in suitable materials.

• Is DP55 water-washable?

Yes. SOCOMORE identifies DP55 as a water-washable red dye penetrant.

• What does Type II mean for DP55?

Type II identifies DP55 as a visible dye penetrant rather than a fluorescent penetrant.

• What are Methods A and C?

Method A refers to water-washable penetrant removal, while Method C refers to solvent-removable processing.

• Is DP55 resistant to overwashing?

SOCOMORE describes DP55 as resistant to overwashing. The approved removal procedure must still be followed to avoid adversely affecting inspection results.

• What temperature range is specified for DP55?

The manufacturer identifies a normal temperature range of +10°C to +50°C under ISO 3452-related conditions. Other temperatures require further technical consultation.

• Does DP55 contain Rhodamine?

The manufacturer identifies DP55 as Rhodamine-free and free from Azo III A2 amines.

• Can DP55 detect internal defects?

Liquid penetrant testing is intended to reveal discontinuities that are open to the inspected surface. DP55 should not be described as detecting completely enclosed internal defects.

• What is the difference between DP55 and DR62?

DP55 is a visible dye penetrant used during penetrant application. DR62 is a separate solvent cleaner-remover associated with surface preparation and specified penetrant inspection cleaning processes.

• Can DP55 be used with D100 White Developer?

D100 is separately documented as a developer for coloured and fluorescent penetrant testing systems. The exact combination and procedure must be confirmed against current technical documentation.

• Where can I request DP55 Red Dye Penetrant in the UAE?

DP55 RED DYE PENETRANT 300ML AEROSOL (PMUC) is listed by RIO Middle East Trading L.L.C. Customers can submit a quotation enquiry through the Add to Quote option on the product page.
