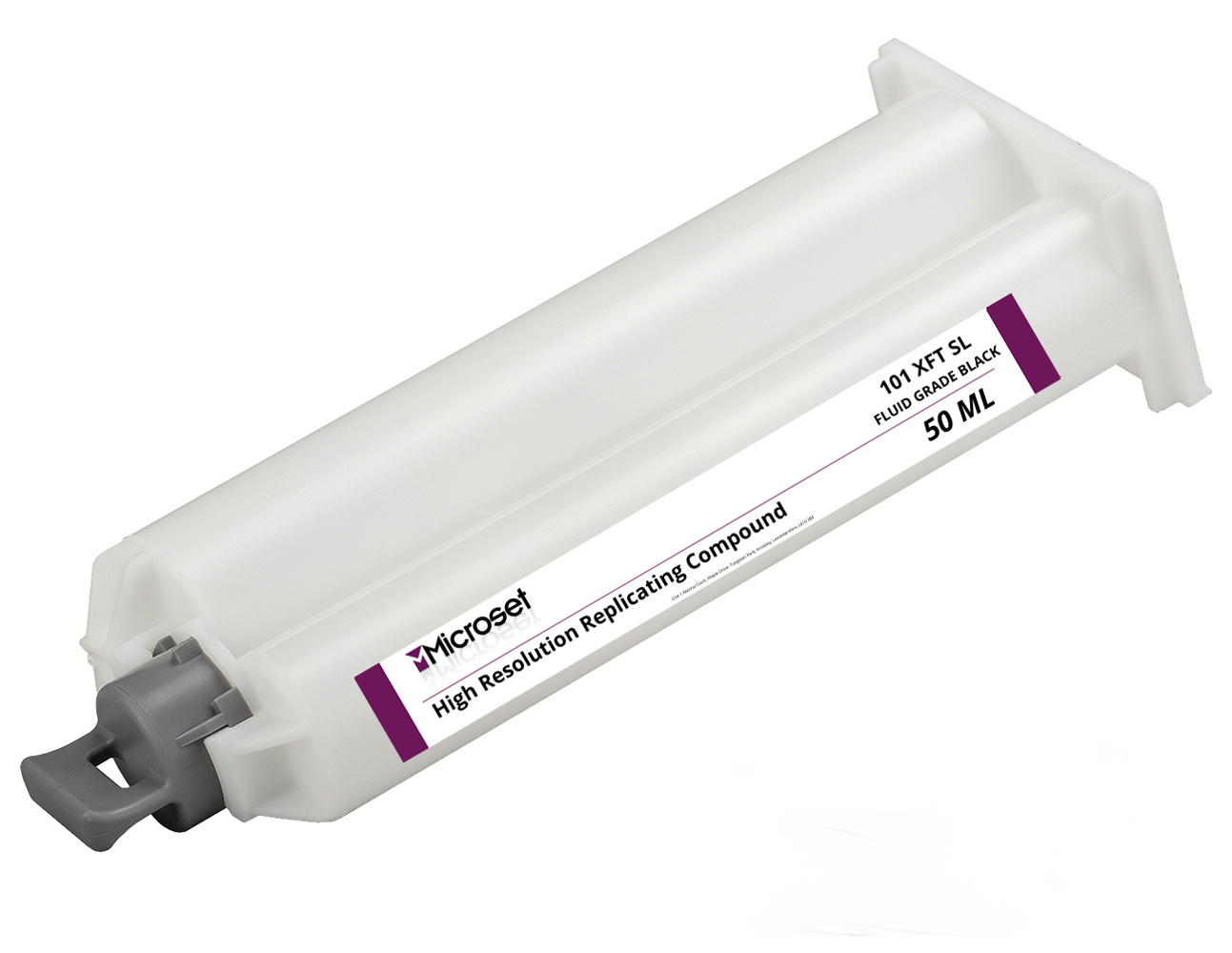

MICROSET 101XFT SL BLACK 50ML Replicating Compound

MICROSET 101XFT SL BLACK 50ML is a two-part, thixotropic silicone replication compound supplied in a 50 ml twin-pack cartridge. It is designed to produce physical replicas of metal surfaces for subsequent examination.

The SL grade provides a longer working period than the standard MICROSET 101XFT grade. This can be relevant when preparing a replica across a larger area or where additional positioning and dispensing time is required.

Explore further MICROSET replication products available from RIO Middle East.

What Does “SL” Mean?

SL identifies the slow, extra-long working-time version of the MICROSET 101XFT grade.

According to the manufacturer:

• MICROSET 101XFT has a 15-minute working time and a 60-minute cure time at 25°C.
• MICROSET 101XFT SL has a 25-minute working time and a 90-minute cure time at 25°C.

The product page should not use the standard 101XFT timings for this SL cartridge.

Higher temperatures can shorten working and curing times, while lower temperatures can extend them. The current Technical Data Sheet should be consulted for the applicable conditions.

Manufacturer-Stated Technical Data

The values are manufacturer-stated specifications rather than guarantees for every application. Actual timings depend on temperature and may vary between batches.

Why Is the Compound Thixotropic?

A thixotropic compound is formulated to resist flowing away from the selected area after application. This makes the MICROSET 101XFT SL replicating compound relevant to vertical and overhead surface replication.

The material should still be evaluated against the geometry of the part, the area being replicated and the required removal method.

The manufacturer identifies the grade for larger vertical or overhead surfaces requiring an extended working period.

What the Product Does—and Does Not Do

MICROSET 101XFT SL BLACK 50ML creates a physical negative replica of the selected surface. That replica may then be removed, supported and examined using the method specified by the applicable inspection procedure.

The material does not independently:

• Detect a crack
• Measure surface dimensions
• Classify an indication
• Determine whether a component is acceptable
• Replace an inspection instrument or approved procedure

Any measurement or interpretation is performed after the replica has been prepared, using suitable equipment and qualified procedures.

Potential Replication Tasks

This metal surface replication material may be considered when the inspection procedure requires a replica of:

• Vertical metal surfaces
• Overhead metal surfaces
• Cavities or internal features
• Tubes and threaded features
• Rough or textured surfaces
• Areas where direct examination is difficult
• Larger areas requiring additional dispensing time

Suitability must be confirmed for the surface geometry and required inspection method. The 50ml surface replication cartridge is described by MICROSET as part of a general-purpose system for small-to-medium replication and moulding applications.

The Required 50 ml Application System

The cartridge is one part of the application system. Compatible equipment should be confirmed before ordering.

For manual dispensing, review the MICROSET 50ML Manual Dispensing Gun.

Static mixing requires a compatible nozzle. RIO lists the MICROSET Nozzle Pack 50ML ×10 for MICROSET 50 ml cartridge systems.

The manufacturer describes the complete 50 ml system as comprising:

1. A 50 ml twin-pack compound cartridge.
2. A compatible reusable dispenser.
3. A compatible static mixing nozzle.

Compatibility should be checked using the exact cartridge reference rather than package size alone.

Replica Handling and Examination

After curing and removal, the replica may require supporting materials for labelling, handling or examination.

Relevant accessories include:

• MICROSET Backing Paper 70 mm × 60 mm
• MICROSET Backing Slides ×10

Backing paper may assist with handling, identification and flattening selected thin replicas. Rigid slides can provide support during subsequent examination. Selection depends on the replica geometry and examination procedure.

Selecting the SL Grade

A slow cure replication compound should be selected because its timing suits the intended task—not simply because a longer working time sounds preferable.

Before selecting this grade, consider:

• Surface orientation
• Area to be replicated
• Ambient and surface temperature
• Time required for controlled dispensing
• Required cure time
• Geometry and replica removal
• Examination method
• Compatible dispenser and nozzle

For smaller or time-sensitive tasks, another MICROSET grade may provide more suitable timings. Product selection should follow the applicable technical procedure.

Technical Source

Review the official MICROSET 101XFT SL product information and the current TDS and SDS before use.

The documentation should be checked for:

• Working and curing conditions
• Cartridge storage
• Shelf life
• Surface preparation
• Application equipment
• Replica removal
• Health and safety information

Frequently Asked Questions

• What is MICROSET 101XFT SL BLACK 50ML?

It is a black, two-part thixotropic silicone compound used to produce replicas of metal surfaces for subsequent examination.

• What is the working time of MICROSET 101XFT SL?

The manufacturer specifies a working time of 25 minutes at 25°C.

• How long does MICROSET 101XFT SL take to cure?

The stated cure time is 90 minutes at 25°C. Temperature affects both the working and curing periods.

• What is the difference between 101XFT and 101XFT SL?

The principal stated difference is timing. At 25°C, 101XFT provides 15 minutes of working time and cures in 60 minutes, while 101XFT SL provides 25 minutes of working time and cures in 90 minutes.

• Can it be used on vertical surfaces?

Its thixotropic consistency is designed for vertical and overhead surfaces. Suitability still depends on the geometry and applicable replication procedure.

• Does it detect surface defects?

No. It produces a surface replica. Examination, measurement and interpretation are separate operations.

• Is a dispensing gun required?

The 50 ml cartridge is intended for use with a compatible MICROSET 50 ml dispenser and static mixing nozzle.

• Which colour is this cartridge?

This product listing identifies the formulation as black.

Request Product Information

Request MICROSET 101XFT SL BLACK 50ML from RIO Middle East with the required quantity, destination and documentation. Confirm the product code, current shelf life, cartridge condition, compatible dispenser and nozzle before ordering.
