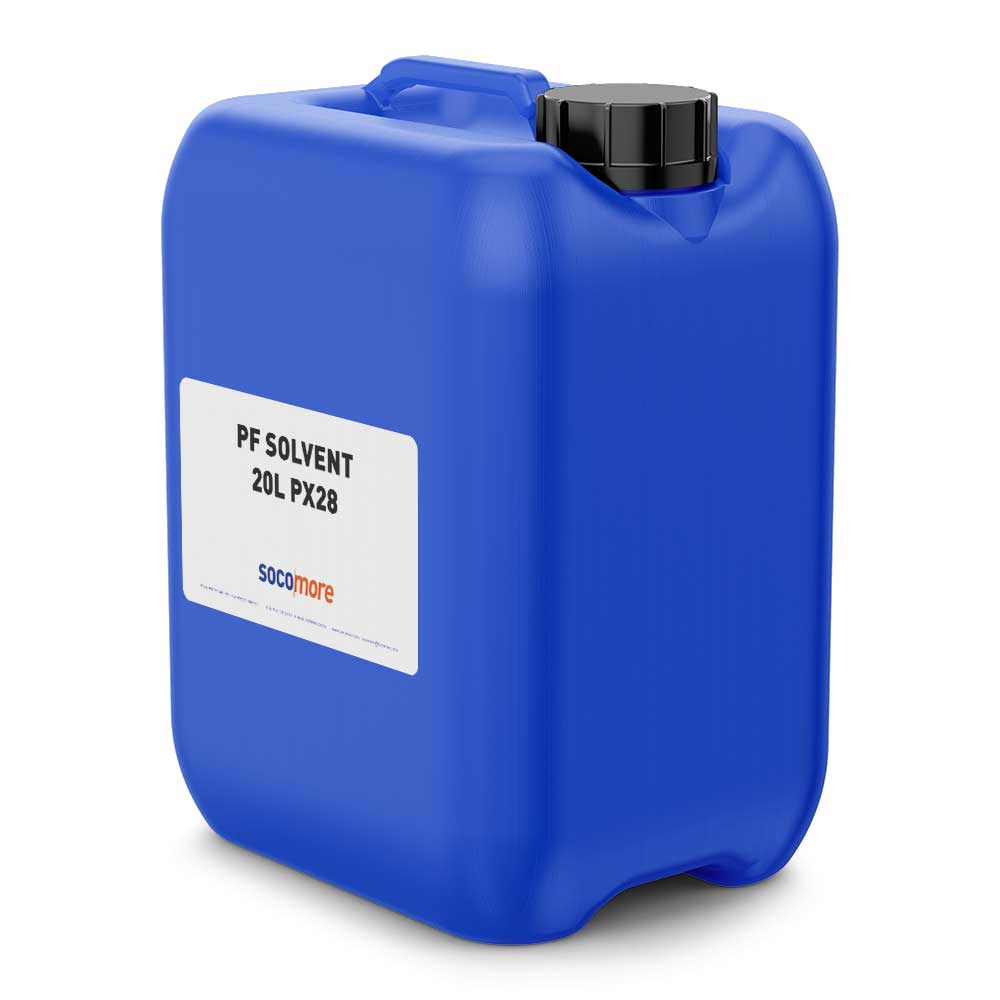

SOLVENT PF SOLVENT 20L PX28
CLEANING SOLVENT PF SOLVENT 20L PX28 is a high flash point, residue-free solvent cleaner and degreaser for cable jointing, cable maintenance and electrical equipment cleaning. Suitable for HV, MV and LV applications, it has a dielectric strength between 25kV and 39kV when tested and removes greases, jelly, oils, soils, tar and bitumen residues.
CLEANING SOLVENT PF SOLVENT 20L PX28 is a high flash point solvent cleaner and degreaser for cable cleaning prior to cable jointing, cable maintenance, switchgear, network equipment and electrical equipment cleaning and degreasing. It removes greases, jelly, oils, soils, tar and bitumen residues.
PF SOLVENT is suitable for high voltage (HV), medium voltage (MV) and low voltage (LV) applications and leaves no residue after complete evaporation. Designed to IEEE Recommendations, it provides an alternative to traditional fast evaporating solvents such as Trichloroethane.
Key Features
- Residue free cleaning ensures no earth tracking or hot spots.
- Full resin adhesion to joint surfaces eliminates moisture ingress.
- Helps to reduce installation faults, ensuring maximum cable life.
- Dielectric strength between 25kV and 39kV when tested.
- Controlled evaporation rate reduces solvent consumption, VOC emissions & costs compared to fast evaporating cleaning solvents.
- Compatibility tested with most materials found in power networks.
- Excellent cable compatibility with various cable jacket materials.
- Suitable for use on PVC, MDPE, Lead, Aluminium, XLPE, EPR, Copper, Silicon, EPDM and Brass.
- No deleterious effects on semi-conductor materials or commonly used gasket materials.
- No lasting or serious impact on dielectric values of paper insulation tested.
- Cleans most oils and greases, including room temperature residual fuel oil.
- Did not exhibit any significant effects in testing on semi-conductor adhesion and mechanical strength or cause significant change in semi-conductor volume resistivity.
- Available in both liquid and low lint pre-saturated wipes utilising a cloth compliant to AMS 3819C & BMS 15-5F qualification requirement.
- Pre-saturated wipe system eliminates the hazardous storage, transport and logistical issues of loose flammable liquids.
Product Details
| Product Code | P20301-101 |
|---|---|
| Dielectric Strength | 25kV and 39kV when tested |
| Voltage Applications | High voltage (HV), medium voltage (MV) and low voltage (LV) |
Approvals
- ABB POWER TECHNOLOGY
- ASTM International
- BOSTON EDISON COMPANY
- DOBLE ENGINEERING COMPANY
- ELASTIMOLD
- FLORIDA POWER CORPORATION
- GE
- GEORGIA POWER RESEARCH
- IEEE PES
- NKT CABLES
- PEPCO
- PFISTERER
- PG&E
- PIRELLI / PRYSMIAN
- SDG&E
- SÜDKABEL
- TYCO ELECTRONICS – ENERGY DIVISION
- WESTERN UNDERGROUND
