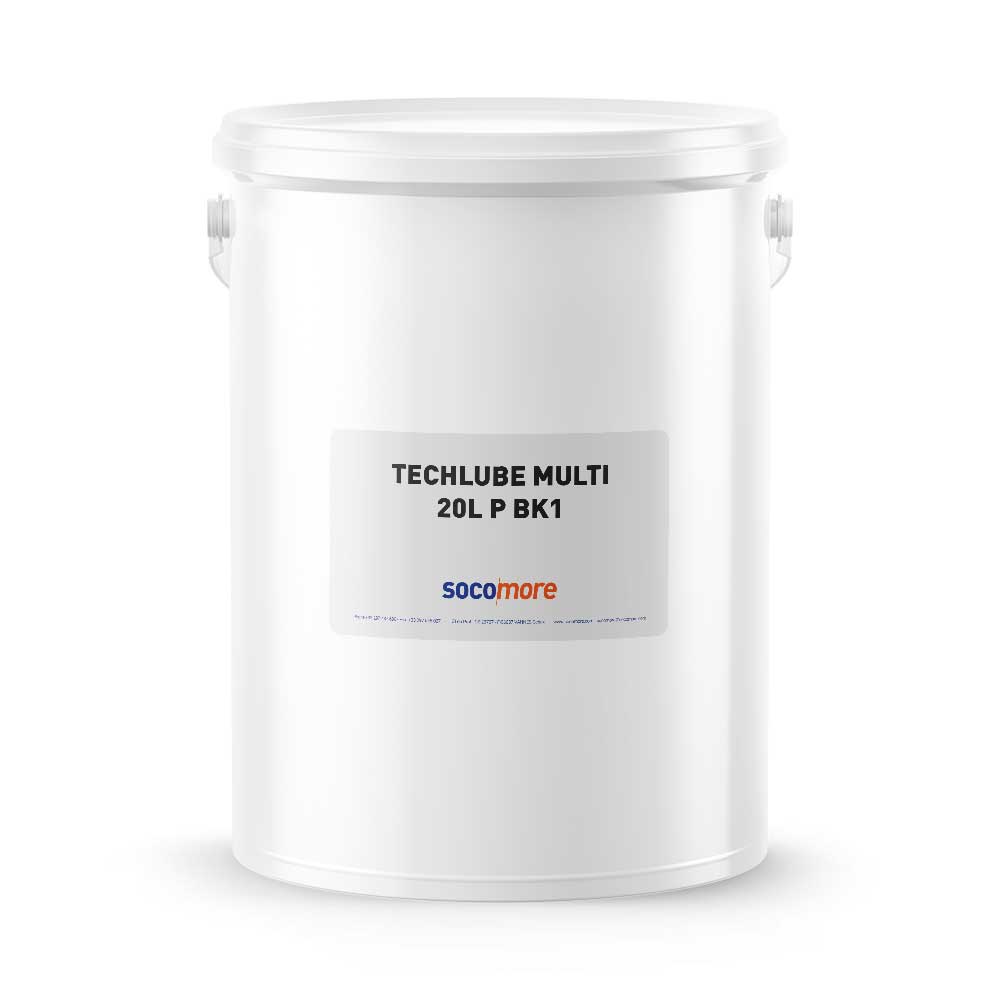

TECHLUBE MULTI 20L P BK1

WATERBASED LUBRICANT TECHLUBE MULTI 20L P BK1 is an all-purpose, water-based underground cable installation lubricant for general cable pulling operations. It provides superior friction reduction in high-shear, difficult electrical utility and telecommunication cable placing operations between cable and all forms of conduit, including multiple concrete duct.

Techlube Multi provides strong adhesion to cables and duct walls, including in wet weather, and resists wash-off in water-filled ducts. The lubricant is non-flammable, non-toxic and substantially biodegradable. It dries slowly to form a thin friction-reducing film that retains its slip, allowing additional cable installations or removals in the same duct at a later date.

Key Features

• Easy-to-apply, water-based high-performance cable lubricant.
• Superior friction reduction and strong adhesion to cable and duct wall.
• Supports regular pulling tension.
• Reduces the risk of cable damage during cable installation.
• Dries slowly to form a thin friction-reducing film that retains its slip.
• Allows additional cable installations or removals in the same duct at a later date.
• Continues to lubricate the cable jacket in flooded conditions.
• Temperature stability.
• Does not contain salt, detergent or grease which can degrade cable jackets.
• No threat to the environment.

Product Details

Cable Jacket Compatibility

Cable jacket materials tested and passed to specification Insulated Conductor Committee Guide P1210/D10:

• High density Polyethylene
• Linear Low Density Polyethylene
• Natural Rubber
• Chlorinated Polyethylene
• Hypalon
• Ethylene Propylene Rubber
• Cross Linked Polyethylene
• Poly-Vinyl Chloride
• Neoprene

Approvals

• AUSGRID
• BELLCORE
• NEXANS
