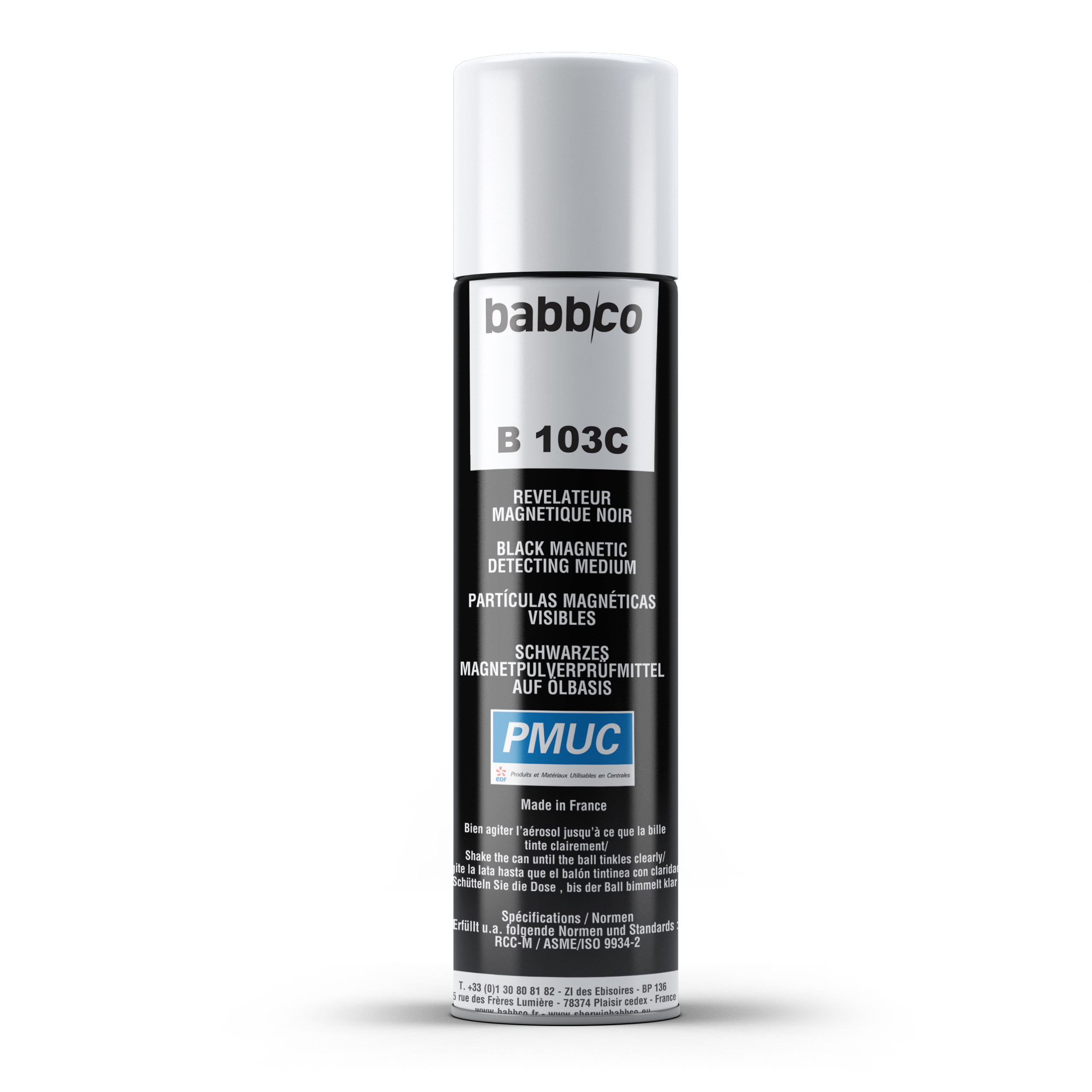

B103C BLACK MAGNETIC INK 400ML AEROSOL CO2 PMUC

B103C BLACK MAGNETIC INK 400ML AEROSOL CO2 PMUC is a BABBCO black magnetic detecting medium supplied for professional Magnetic Particle Inspection.

B103C is associated with visible, non-fluorescent MPI procedures on suitable ferromagnetic parts. During a controlled inspection, the black magnetic medium is applied in conjunction with the specified magnetisation method. Any indications produced must then be examined and interpreted according to the governing NDT procedure.

The product does not independently determine whether a component contains an unacceptable defect.

Product Identification

These details identify this specific aerosol configuration. Technical properties and operating limits should be checked against the current manufacturer documentation.

What B103C Contributes to the Inspection

B103C supplies black magnetic particles for use during a documented magnetic particle testing procedure.

The manufacturer lists the product for procedures involving:

• Electric-current magnetisation equipment
• Electromagnets
• Permanent magnets

The appropriate equipment and field direction depend on the component geometry, expected discontinuity orientation and applicable inspection specification.

B103C should not be presented as a replacement for magnetic-testing equipment, calibration checks, lighting controls or qualified inspection personnel.

Visible Ink or Fluorescent Ink?

B103C and B101C are both magnetic inspection consumables, but they support different examination methods.

The two products should not be treated as interchangeable. The approved inspection procedure must identify whether visible or fluorescent magnetic particle testing is required.

For the fluorescent format, view B101C Fluorescent Magnetic Ink 400ml.

Role of the White Contrast Background

A white contrast coating may be specified beneath black magnetic ink to create a light background for viewing dark particle indications.

BABBCO identifies a white contrast background as a companion product in its technical documentation. RIO Middle East lists B104B White Contrast Aid Paint 500ml for magnetic particle inspection.

B104B and B103C have different functions:

• B104B provides the white background coating.
• B103C provides the black magnetic detecting medium.

The white paint does not contain the magnetic detecting particles, while B103C is not intended to act as the background coating.

Material Selection Boundary

Magnetic Particle Inspection is intended for suitable ferromagnetic materials.

B103C should not be presented as a general NDT material for:

• Aluminium
• Copper
• Most non-ferromagnetic stainless steels
• Plastics
• Composite materials
• Other non-ferromagnetic substrates

The component material must be confirmed before choosing this magnetic particle testing aerosol. Where the material is unsuitable for MPI, another inspection method may be required under the governing procedure.

What the Product Does Not Establish

Using B103C does not by itself establish:

• The required magnetising current
• The direction of magnetisation
• The required white-light intensity
• The inspection temperature
• The minimum detectable discontinuity
• Whether an indication is relevant
• Whether the inspected part is acceptable
• Compliance with every edition of a referenced standard

Those requirements come from the approved inspection technique, applicable standard, component documentation and acceptance criteria.

Browse additional magnetic testing products or explore RIO Middle East’s broader non-destructive testing range.

Published Standards and Conformity References

The manufacturer currently lists the following references for B103C:

• AMS 3046
• ASME
• ASTM E1444
• ISO 9934
• NF F 00-090
• PMUC
• RCC-M

These are manufacturer-published references and should not be interpreted as universal approval for every component, organisation or inspection programme.

Before ordering, confirm:

1. The required standard.
2. The applicable standard revision.
3. The exact B103C product reference.
4. The required technical or conformity documents.
5. Any customer-specific approval requirements.

Aerosol Safety Information

The current manufacturer SDS classifies B103C Spray as an extremely flammable aerosol and states that the pressurised container may burst if heated.

The product must be handled and stored according to the current regional SDS. Considerations include:

• Ventilation and exposure controls
• Personal protective equipment
• Protection from heat and ignition sources
• Aerosol storage requirements
• Protection from direct sunlight
• Disposal of used and empty containers
• Applicable transportation restrictions

The product page should not describe B103C as non-flammable, harmless or universally safe.

Technical Documentation

Review the following manufacturer sources:

• Official BABBCO/SOCOMORE B103C product page
• Official B103C Technical Data Sheet
• Official B103C Spray Safety Data Sheet

Document availability, regional classifications and revision status should be confirmed at the time of enquiry.

Information to Include in the RFQ

When requesting B103C from RIO Middle East, provide:

• Product code 100509C
• Required number of 400ml aerosols
• Applicable MPI procedure
• Required standard and revision
• Whether B104B white contrast paint is also required
• Required TDS, SDS or conformity documentation
• Delivery country and destination
• Any applicable aerosol transport requirements

Frequently Asked Questions

• What is B103C Black Magnetic Ink?

B103C is a black magnetic detecting medium used within visible Magnetic Particle Inspection procedures on suitable ferromagnetic parts.

• Is B103C fluorescent?

No. B103C is a black, visible magnetic detecting medium. B101C is the fluorescent magnetic ink listed in RIO Middle East’s magnetic testing range.

• What is the size of the B103C aerosol?

This product reference is supplied as a 400ml CO₂ aerosol.

• What is the B103C product code?

The product code is 100509C, and the published GTIN is 3665792001245.

• Can B103C be used on aluminium?

Conventional Magnetic Particle Inspection requires a suitable ferromagnetic material. Aluminium is not a ferromagnetic material, so B103C should not be selected for aluminium inspection as though it were a universal NDT product.

• Does B103C require white contrast paint?

The manufacturer’s technical documentation recommends a white contrast background for relevant visible inspection procedures. The actual requirement must follow the approved MPI procedure.

• Which white contrast product can be linked with B103C?

RIO Middle East lists B104B White Contrast Aid Paint 500ml as a related magnetic-testing product.

• Can B103C determine whether a part should be rejected?

No. B103C supplies the magnetic detecting medium. A qualified inspector evaluates indications against the applicable procedure and acceptance criteria.

• Can it be used with permanent magnets?

The manufacturer includes permanent magnets among the listed magnetisation methods. Equipment selection must still comply with the approved inspection procedure.

• What does PMUC mean on the product page?

PMUC is a conformity reference published by the manufacturer. Buyers requiring this designation should request the applicable supporting documentation and confirm its relevance to their process.
