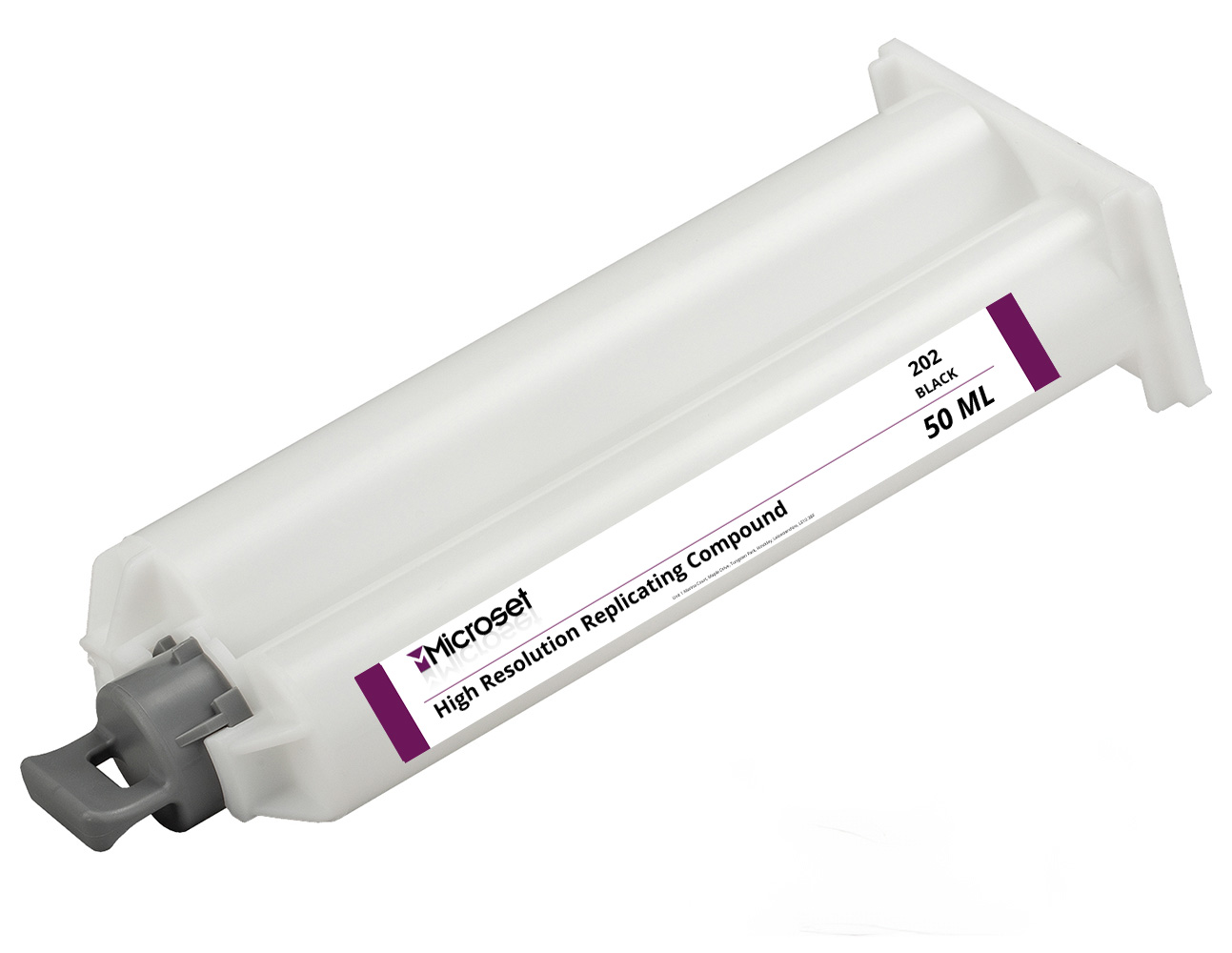

MICROSET 202 (BLACK) Replicating Compound

MICROSET 202 BLACK is a two-part silicone replicating compound formulated to capture the detail of metal surfaces. After curing, the replica can be removed and examined separately when direct access to the original surface is restricted or inconvenient.

The product belongs to the MICROSET range of surface replication products available from RIO Middle East.

What Does MICROSET 202 BLACK Do?

MICROSET 202 BLACK creates a physical negative replica of the surface to which it is applied. The cured replica may then be used for microscopic examination, surface-finish assessment or other dimensional examination performed under the applicable inspection procedure.

The compound does not independently detect, classify or approve a defect. Interpretation depends on the prepared replica, the examination method, the equipment used and the applicable technical procedure.

Manufacturer-Stated Technical Data

Working life and cure time vary with temperature. The manufacturer also notes that quoted times may vary by up to ±15% between batches. Consult the current product documentation before use.

Where May It Be Considered?

According to the manufacturer, MICROSET 202 can be considered for replicating:

• Metallurgical microstructure
• Surface finish
• Rough metal surfaces
• Cavities and tubes
• Thread profiles
• Areas that are difficult to examine directly

Suitability should be confirmed against the surface geometry, required examination method and the approved inspection procedure.

Geometry Consideration

MICROSET 202 cures harder and is less flexible than MICROSET 101 compounds. The manufacturer advises that replicas may be more susceptible to tearing or damage when removed from complex geometries or surfaces with significant re-entrant detail.

This limitation should be assessed before selecting the compound for internal features, undercuts or intricate shapes.

Cartridge and Accessory Selection

MICROSET 202 is manufacturer-listed in 50 ml, 265 ml and 495 ml twin-pack cartridges. The exact cartridge size offered on this page should be shown beside the product title and quotation button.

Accessory selection must match the chosen cartridge. For example, a 265 ml cartridge may be paired with the MICROSET 265ML Manual Dispensing Gun. Do not present this gun as compatible unless the listed product is confirmed as the 265 ml version.

For handling and examining completed replicas, review:

• MICROSET Backing Paper 70 mm × 60 mm
• MICROSET Backing Slides × 10
• Additional MICROSET replication products

Technical Reference

For verified product characteristics, limitations and curing information, consult the official MICROSET 202 technical information. The current technical data sheet, safety data sheet and application instructions should be reviewed before handling or use.

Frequently Asked Questions

• What is MICROSET 202 BLACK?

It is a black, two-part silicone compound used to reproduce the detail of metal surfaces for subsequent examination.

• What resolution does MICROSET 202 provide?

The manufacturer specifies a resolution of 0.05 μm.

• Does MICROSET 202 detect defects by itself?

No. It produces a surface replica. Any examination, measurement or interpretation is carried out separately using the selected inspection method and applicable procedure.

• How long does MICROSET 202 take to cure?

The manufacturer lists an approximate cure time of seven minutes at 25°C and an approximate working life of two minutes. Both timings change with temperature and may vary between batches.

• Which cartridge sizes are available?

The manufacturer lists 50 ml, 265 ml and 495 ml twin-pack cartridges. RIO Middle East should confirm which size is supplied under this product page.

• Is MICROSET 202 suitable for complex shapes?

Its suitability depends on the geometry. Because MICROSET 202 cures harder and is less flexible than MICROSET 101, removal from complex or re-entrant features may damage the replica.

Request Product Information

Contact RIO Middle East to confirm the cartridge size, product code, current availability, compatible dispensing equipment and applicable technical documentation before ordering.
